ABLD120 Hdpe 50 Liter 60 L 60l 100 Litre Extrusion Blow Molding Open-top Blue Plastic Barrel Drums Blowing Making Machine Price

Product Description                                                                                               DAWSON MACHINERY & MOULD GROUP   Accumulation Type Large Barrel Blow Molding Machine ABLD120   suitable for making 200L 220L Double L Ring Chemical Drums. The output for 9.5KG 200L double L ring drum is 20 Pcs/hour, for 10.5KG 227L double L ring drum is 18 Pcs/hour. This Model ABLD120 is popular in chemical liquid packing field, due to its clear product positioning, strong and reliable product strength, high quality/price rate, stable performance, easy operation and maintenance.

Machine Model		Max. Bottle size	Production forecast
ABLD120	Single Station/ 1 Head	200L	18~20 BPH

                                                                                                                                                                                                                    Technical Parameters

Name	Units	ABLD100	ABLD120
Max.product volume	L	120	300
Screw diameter	MM	100	120
Screw drive power	KW	55	132
Screw heating capacity	KW	22	36
Output of HDPE	KG/H	200	350
Oil pump drive power	KW	22	37
Clamping force	KN	600	900
Max.size of mold	MM	1000×1300	1200×1700
Material storage	L	14	24-35
Template size	MM	1150×1150	1200×1600
Mold stroke	MM	500-1350	880-1700
Max.die diameter	MM	450	700
Die heating power	KW	21	36
Size of machine	L×W×H	5.4×2.5×4.5	7.5×3.5×5.5
Weight of machine	TON	15	36

Workshop Our professional blow molding machine workshop...

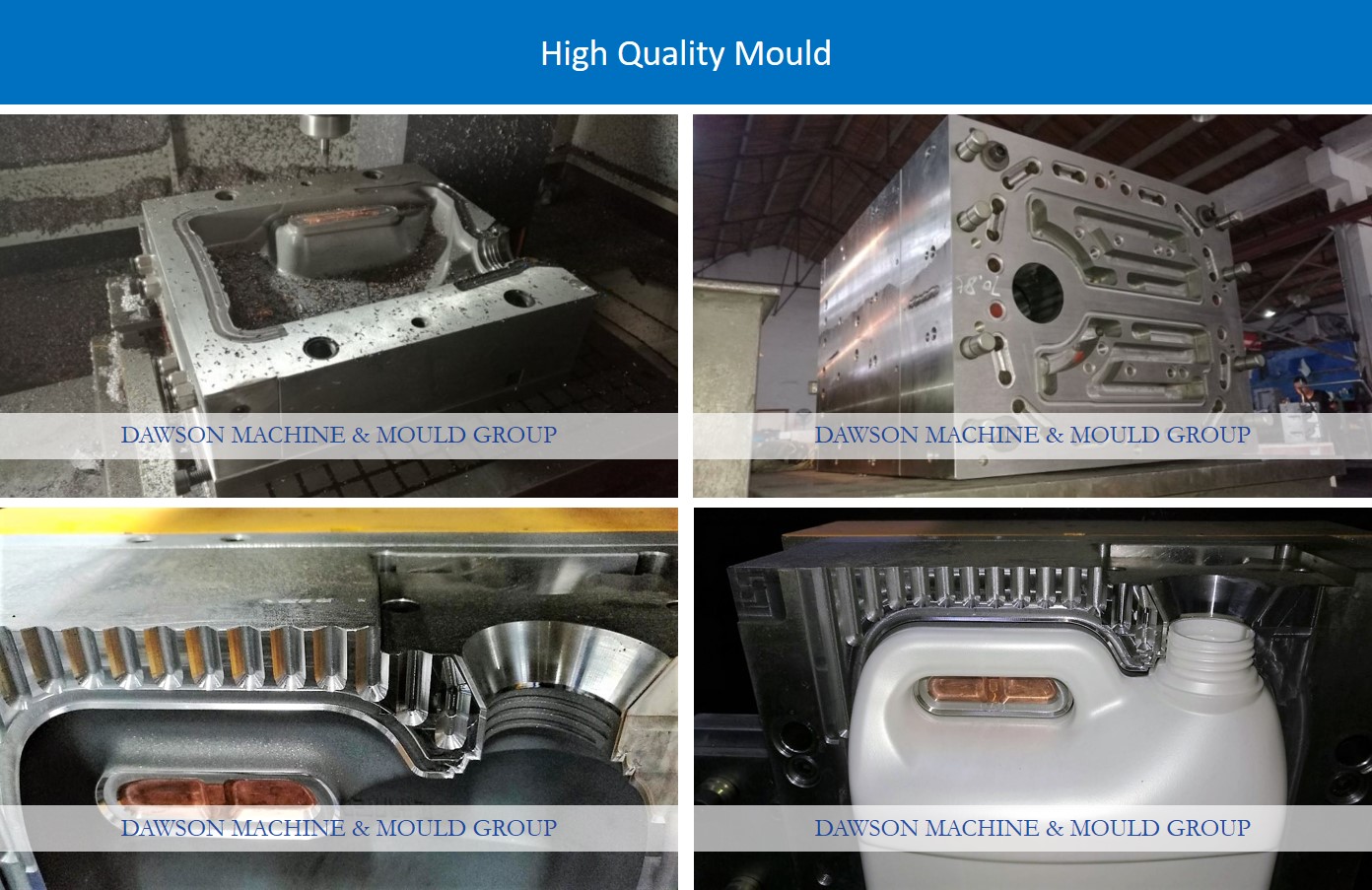

                                                                                                                                                                                                                      High Quality Mould   High Quality Blow Molding mould   In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.  We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.    - We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material - Necking plate use JAPAN DC53 Heat treatment to HRC62 - Double neck design available to change in future as a spare part necking - All mould can be made auto-deflashing or manual deflashing as per customer requests - Perfect mould cooling design to ensure the best moulding preformace - Available to provide 2D & 3D product drawing for customers - Available to send samples to customer for approval the product quality - We had already made Moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...                                                                                                                                                                             Company Information DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We have our own service team in   Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine, Injection molding machine,  PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns. The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services! DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Feedback Dawson Machine & Mould Group   We committed to providing customers with plastic machinery and equipment production lines beyond expectations.     Customer satisfaction is our eternal pursuit...   Our Services

FAQ

Q:  Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. )  We also provide visit online by video.   Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine?  Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ?  We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the Auxiliary Equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Contact us if you need more details on Plastic Storage Drum Making Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 200l Blow Moulding Machine、Large Barrel Making Machines. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Accumulation type blow molding machine
