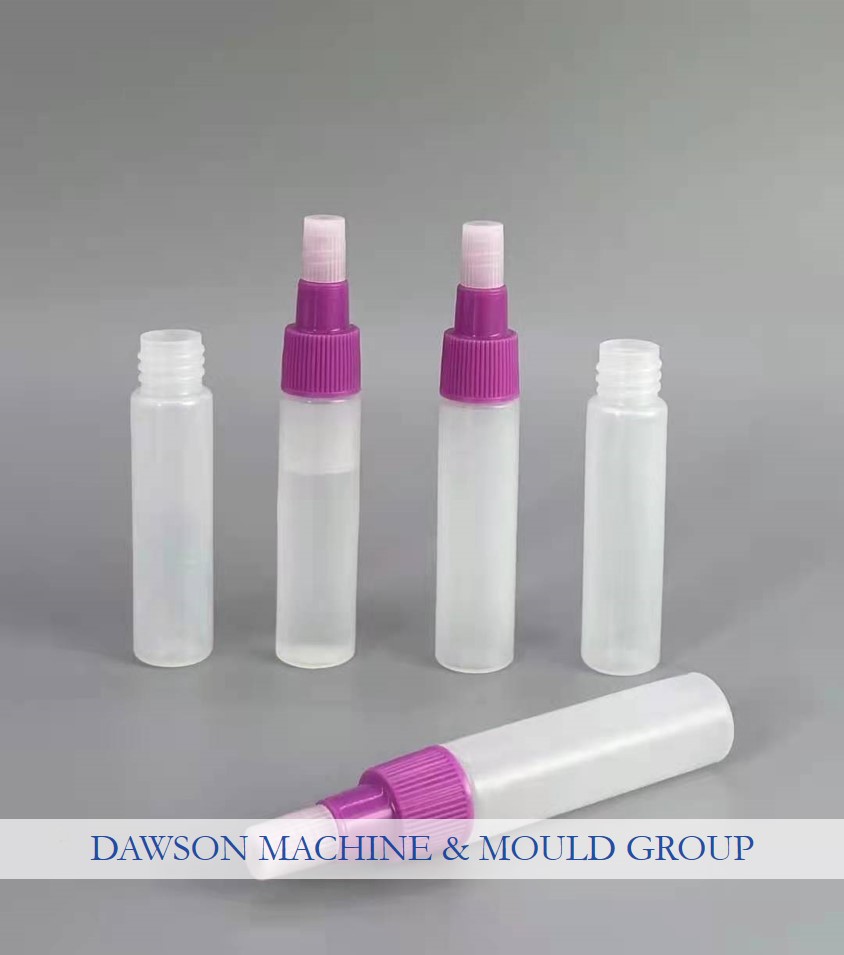

Plastic medical sampling bottle blowing machine Factory 3ml 5ml sample extraction tubes injection blow molding machine
Product Description

DAWSON MACHINERY & MOULD GROUP
Injection Blow Molding Machine IBM35D
Injection blow molding is a kind of blow molding method which combines injection molding with blow molding. Firstly, the mold with bottom is produced by injection molding, and then the mold is transferred to the blow mold for blow molding. Injection blow molding is the first step to produce the mold embryo. The injection agent injects the melt into the Injection Mold with the blowing core tube to form the mold embryo with the bottom, and then transfers it to the blowing mold of the blowing station through the mechanical device for blowing; After that, the mold is inflated, the blow mold is closed, and the compressed air is introduced into the mold through the mandrel air hole. The mold is tightly fitted with the blow molding cavity under the action of air pressure, and then transferred to the demoulding station after cooling; Finally, the product is demoulded. At the demoulding station, the product is ejected from the mandrel or directly sent to the packaging position, and then the next cycle of production is carried out.
The injection and blowing process has high automation depth and production efficiency; The quality of molded products is better than that of extrusion blow molding; The product has no splicing, high strength at the bottom, uniform wall thickness and high precision of mouth size; There is no corner scrap or flash, and the seam line of the product can hardly be seen; It is suitable for processing large quantities of 5ml to 1L small plastic refined containers and wide mouth containers, such as cosmetics, daily necessities, medicine and food packaging bottles.



Model | |||||||
Item | Unit | Date | |||||
Injection system | Screw Diameter | mm | 40 | 45 | 50 | ||
Max. Theoretical injection capacity | G | 176 | 260 | 314 | |||
Heating capacity | KW | 7.2 | 10 | 10 | |||
No. of heating area | Qty | 3 | 3 | 3 | |||
Clamping & blowing system | Clamping force of injection | kn | 350 | 450 | 650 | ||
Clamping force of blowing | kn | 40 | 78 | 89 | |||
Opening stroke of mold platen | mm | 120 | 120 | 140 | |||
Max. Platen size (L×W) | mm | 420×340 | 560×390 | 740×390 | |||
Min. Mold thickness (H) | mm | 180 | 240 | 280 | |||
Heating capacity of mould | KW | 2.8 | 4.0 | 5.0 | |||
Product dimension range | Suitable bottle range | ml | 3-800 | 3-800 | 5-800 | ||
Max. bottle height | mm | ≤180 | ≤200 | ≤200 | |||
Max. Dia. of bottle | mm | ≤80 | ≤80 | ≤80 | |||
Dry cycle | s | 4 | |||||
Hydraulic driving system | Motor power | KW | 11/15 | 18.7/22 | 17 | ||
hydraulic pressure | Mpa | 14 | 14 | 14 | |||
Pneumatic system | Min. Air pressure | Mpa | ≥0.8 | 1.0 | 1.0 | ||
Discharge rate of compressed air | M3/mm | ≥0.7 | ≥0.8 | ≥0.8 | |||
Cooling system | Water flowage | M3/h | 3 | 3 | 4 | ||
Total rated power with mold heating | KW | 21/25 | 34/38 | 45 | |||
Machine information | Dimension | M | 3.1×1.2×2.2 | 3.5×1.4×2.3 | 4×1.28×2.35 | ||
machine weight | Ton | 4.0 | 6.0 | 7.5 |




Common blow molding processes include extrusion blow molding, injection blow molding and stretch blow molding. Extrusion blow molding, extruding molten material by extrusion device, placing extrusion embryo in blow molding mold for blowing, demolding and taking out products after cooling and setting; In injection blow molding, the bottom mold is first injected, then transferred to the blow mold to blow, cooled and shaped, and then demoulded to take out the product; Stretch blow molding is to produce the mold embryo by extrusion or injection, put it in the blow mold, stretch it axially with the drawing rod, blow it horizontally, then cool it to shape, and finally demould the product.
In the production of the same product, injection blowing and extrusion blowing have inherent advantages, such as no flash, no waste, accurate size, high production efficiency of three-step method, three working positions working at the same time, no need to wait in neutral position; With the conveyor belt, the testing equipment can directly enter the packaging station, with a high degree of automation. Therefore, a conclusion can be drawn: in the range of packaging bottles, the injection blowing process can improve the production efficiency and reduce the production cost.

Dawson injection blow molding machine is equipped with professional injection system and precision control system, which can meet the requirements of high-speed opening and closing mold, high clamping force and uniform distribution of clamping force at each position of the mold. The three position rotary lifting system can rotate 120 ° to make the three positions of injection molding, blow molding and demoulding run continuously and smoothly. At the same time, due to the use of hydraulic drive linkage mechanism, the positioning of the machine is more accurate, the maintenance cost is lower, and it is more rapid and stable. The demoulding station cooperates with the conveyor belt to realize automatic demoulding, automatic counting and automatic packaging. The whole process avoids manual contact, so that the products produced by the machine can meet the stringent requirements in the field of medicine and health.

our own engineers team, we have more then 18 years experience in this field.
1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.
2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the
others.
Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.




Injection blow plastic bottles are molded from raw materials to finished products in one step, with a high degree of automation, no need of manual secondary processing, labor saving, hygienic and in line with the GMP requirements of pharmaceutical packaging. It is especially suitable for the production of pharmaceutical bottles, juice, beverage, milk bottles and cosmetic bottles and other industries with higher bottle requirements.
