Proper price new design popular product pet stretch blow molding machine

Product Description

Products Description

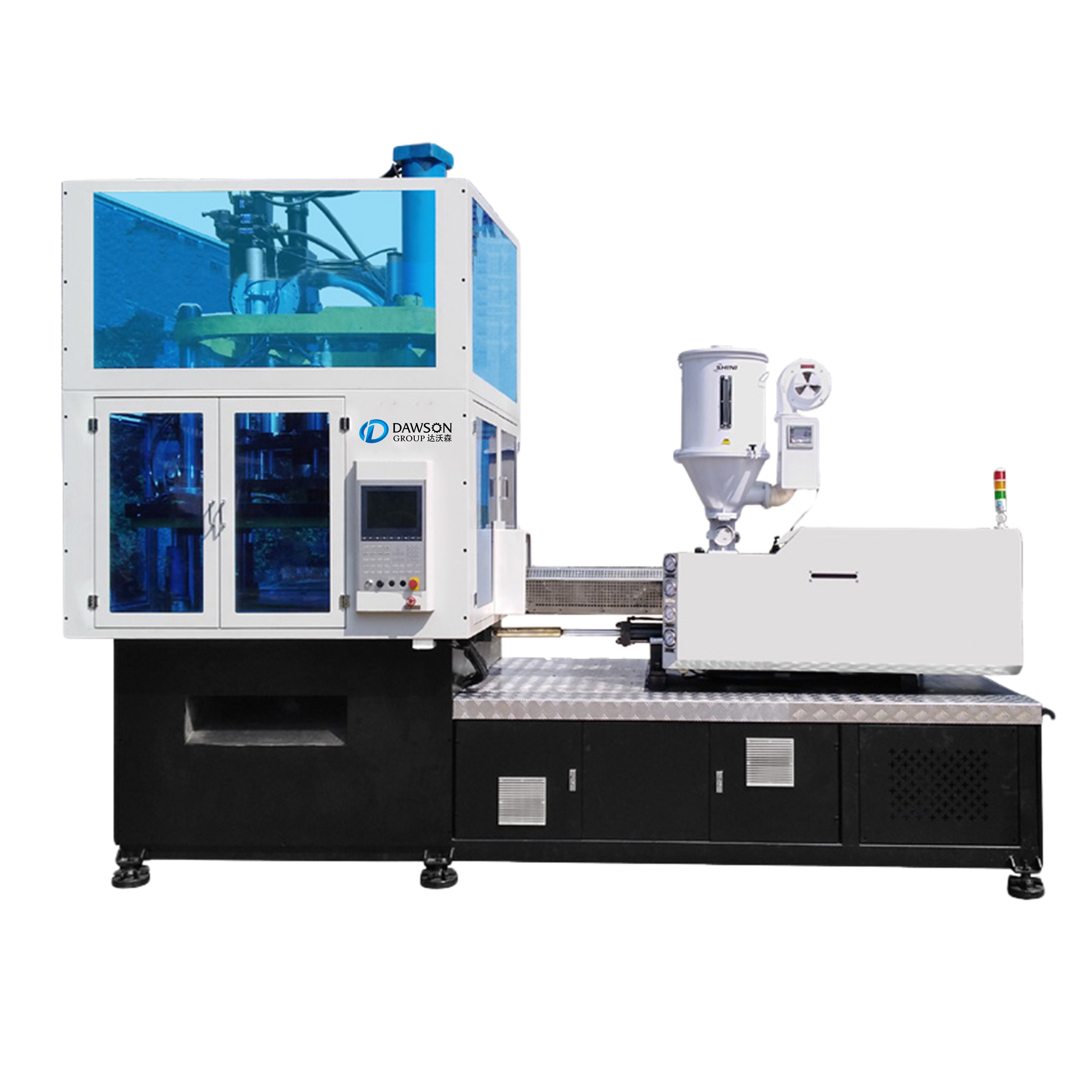

DAWSON MACHINERY & MOULD GROUP Our customers are all around the world.   Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru.... Injection Stretch Blow Molding Machine ISBM1100N-3 The Injection Stretch Blow Molding Machine process includes mould injection, stretch blowing and off-molding, all these steps could be finished in one step. The products from this machine don’t have flash, sprue, and with much less disfigurements. It presents the perfect looking mouth, bottom and seam as well as better transparency, higher rigidity. ISBM Injection Stretch Blow Molding Machine products are thinner, is possible to help you save 50% raw material. Besides the merit mentioned above, this machine can reach higher speed so as to achieve higher efficiency. ISBM1100N-3 is suitable for eye dropper bottles, medicine bottles, cosmetic bottles, jars, milk bottles, yogurt bottles, baby bottles...etc. Feature CE certificate One step forming, high efficiency production Excellent plasticizing unit Bridge clamping unit for synchronism mould open/close, cycle time less Servo system can save 35 to 40% energy compared to normal system Servo rotary, precise, long using time, easy maintenance, save energy. Optional injection with all-electric way, replacing hydraulic way Recycling material available

SCREW DIAMETER(mm)
50
SCREW L/D RATIO (L/D)
20.5:1
SCREW SPEED (R/MIN)
0-150
THEORETICAL INJECTION WEIGHT (G)
481
INJECTION PRESSURE (MPa)
176
MAX. HYDRAULIC PRESSURE (MPa)
140
ACTUAL INJECTION WEIGHT (G)
452
BLOW CLAMPING FORCE (KN)
150
CLAMP TONNAGE (KN)
800
WHEEL DIAMETER (MM)
1100
MAX HIGHT OF BOTTLE - without core (MM)
20-200
MAX HIGHT OF BOTTLE - with core (MM)
20-250
OPEN VERTICAL MOLD TRIP (MM)
530
MAX PUMP PRESSURE (MPa)
16
SERVO MOTOR (KW)
22
HEATING POWER (KW)
12.2
OIL TANK VOLUME (L)
450
DIMENSION OF MACHINE (M)
4.5X1.75X3.3
WEIGHT OF MACHINIE (TON)
8
Recommended by seller
More Products
Company View
Production Line" class="magic-0">Production Line
Packaging & Shipping
FAQ
Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support .
Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!and bottles in all shapes.
